Bed Long Single Smoke and Medium Mattress IC333

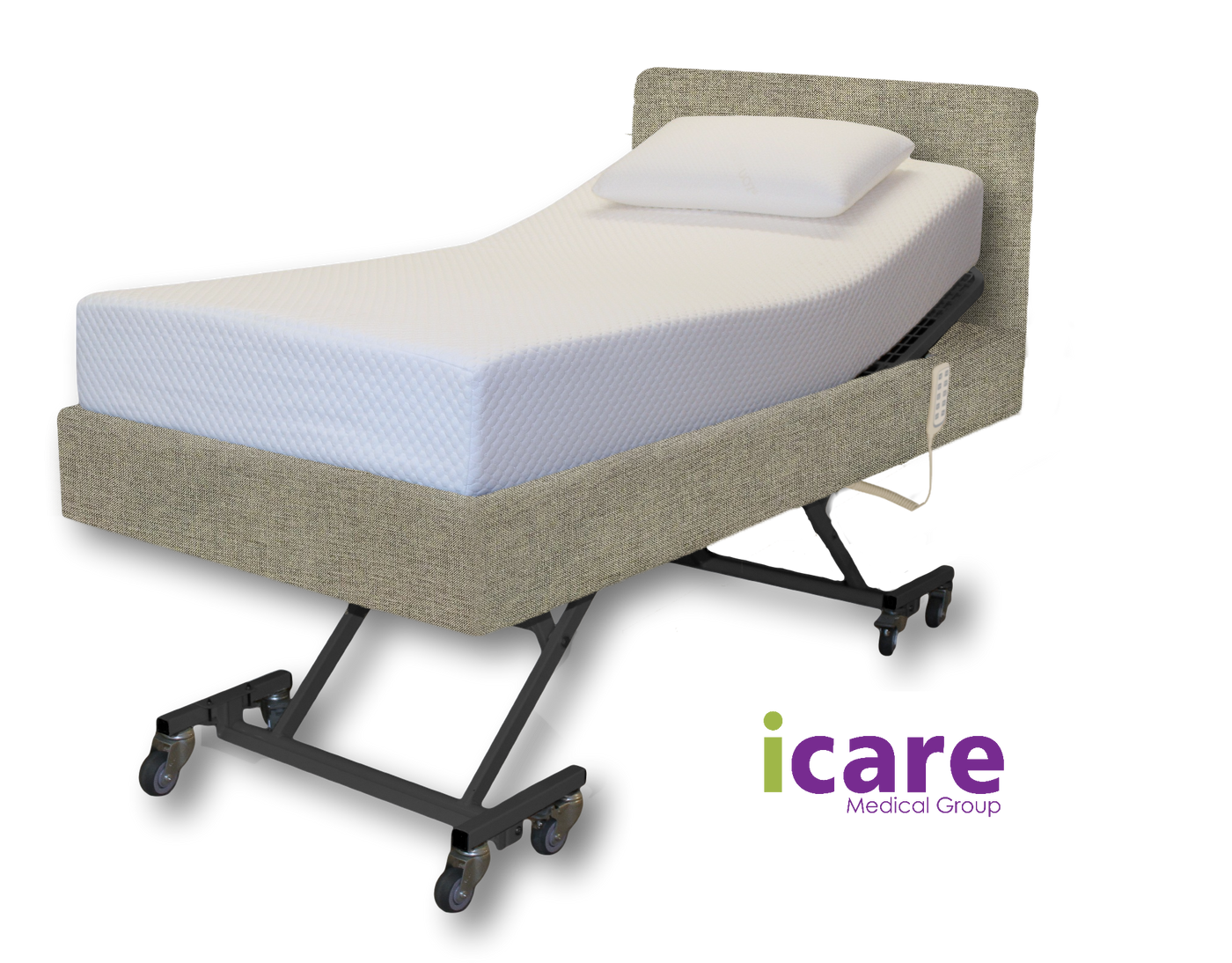

IC333 Premium home care bed NZ

The IC333 Premimum Homecare Bed NZ is unmatched for function and durability, taking the hospital look out of your room. This four function bed, features dual lift motors totalling 12,000 newtons lifting power, unlimited under-bed clearance and eight heavy duty castors.

Now available in Vinyl options as well. Please enquire for more information.


  • Safe working load – 200kg on long single and king single sizes and 300kg for double and queen sizes. The safe working load includes any model of Icare mattresses.
  • Hand Piece – Backlit for night time use. Easy press buttons. Wired stretch cord. Hook attachment for hanging to side of bed. Wipeable.

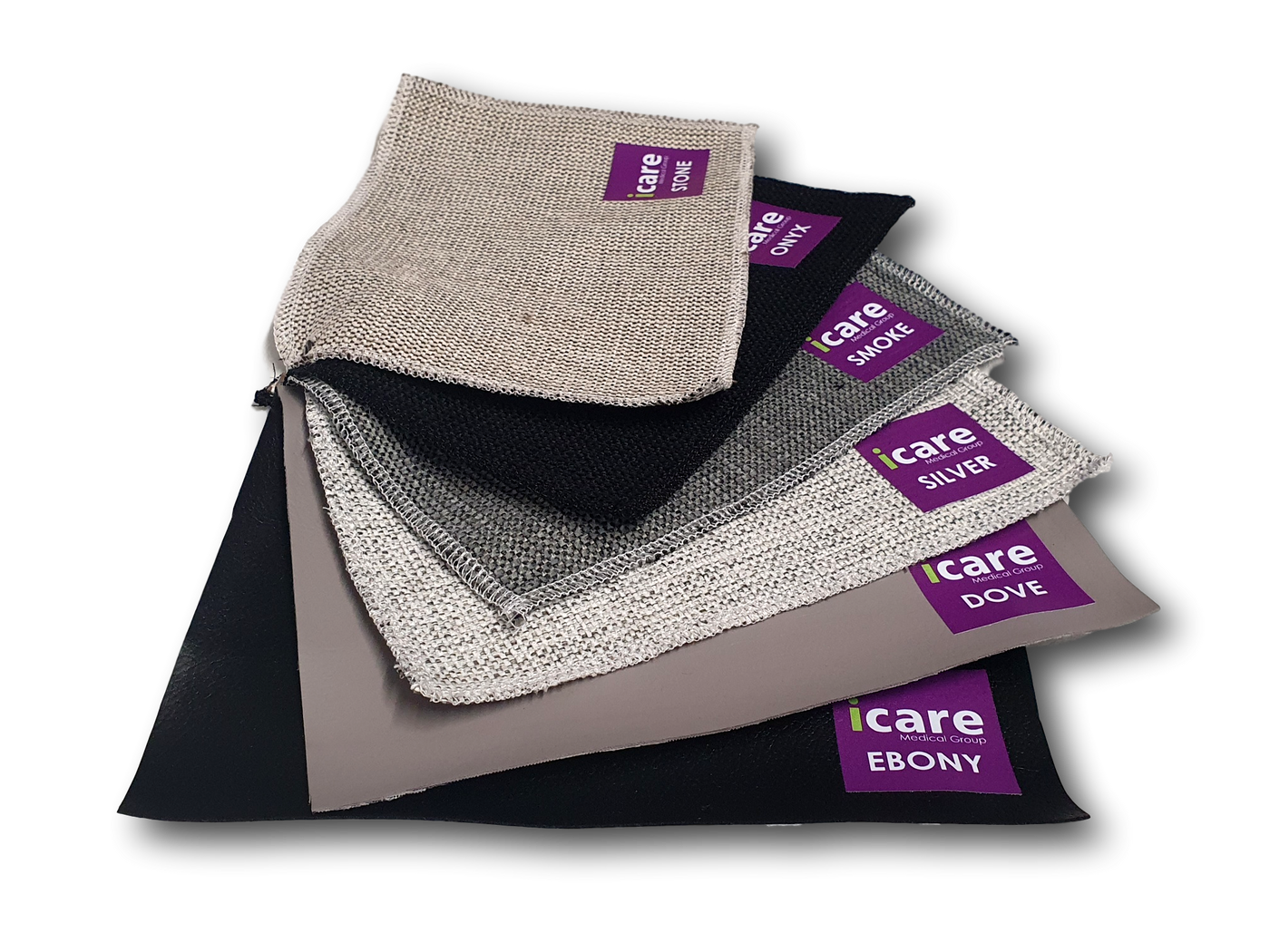

  • Fabric – Hard wearing commercial grade fabric. Vinyl is treated with antibacterial properties and waterproof.
  • Mattress Surface – Strong metal mesh under mattress allowing increased airflow
  • Actuators – 1x 6000 newton – 24 watt head adjust actuator. 1x 6000 newton – 24 watt knee adjust actuator. 2x 6000 newton – 24 watt height adjust actuators (2x 8000 newton on double and queen sizes)
  • Wheels – 8x heavy duty swivel castors with one lockable castor on each corner.
  • Head lift angle 62º and knee break angle 42º
  • Max height – 66cm from floor to top of base
  • Min height – 22cm from floor to top of base
  • Optional 3 sided surround for wheelchair transfers
  • No pull motors
  • Unlimited under bed Clearance

Key Functions

  • Head Lift
  • Knee Break
  • Height Adjustable 22-66cm
  • Trendelenburg

Key Features


  • 200kg Safe working Load on Long Single and King Single
  • External Rechargable Battery back up
  • End and Side mattress retainer bars
  • No Gap Between Mattresses On Super King Beds (2x Long Singles)
  • Strong Breathable Mattress Platform
  • Lockable Heavy Duty Castors10 Year Warranty
  • Unlimited Under Bed Clearance
  • Available With Headboards
  • 300kg Safe Working Load On Double And Queen
  • Back Lit Wipeable Hand Piece
  • Ultra Low Design Reducing Risk Of Falls



LONG SINGLE - Mattress Surface Size: 2030 x 900 - Base Size: 2150 x 960

KING SINGLE - Mattress Surface Size: 2030 x 1070 - Base Size: 2150 x 1120

LONG DOUBLE - Mattress Surface Size: 2030 x 1350 - Base Size: 2150 x 1400, One hand control

QUEEN - Mattress Surface Size: 2030 x 1500 - Base Size: 2150 x 1580, One hand control



Most popular, medium feel

Middle of the range, the IC20 proves to be popular for most. The medium feel provides a soft feel but excellent support.

How pressure care works with the IC20: This mattress is heat and pressure sensitive which means that as it gets warmer it becomes softer. So when there is a pressure point
developing which usually gets hot and enflamed, this area of the mattress will become softer which allows the blood to flow freely again.


  • No turn design reducing manual handling
  • Anticrease XP base to allow easy contour for any profiling bed
  • Standard cover MVTR: NA. Medical Cover MVTR (g/24h·m2): 1635.0 Average
  • Medical Cover BS7175: Crib 5
  • Waterlow ≤20

To launder the cover in a washing machine, set the main wash to a minimum of 65°C for no less than 10 minutes. The cover can be tumble dried on low heat and the temperature must not exceed 60°C. The foam can be autoclaved at 134°C.

Key Functions

Peak Pressure: <19 mmHg

Key Features

  • 200mm Mattress Depth
  • 2 Way Stretch Zip Off Washable Cover
  • Visco Elastic Memory Foam
  • 10 Year Warranty
  • Recommended User Weight 30kg ~ 200kg


SINGLE- Mattress Size: 1900 x 900

DOUBLE - Mattress Size: 1900 x 1350

LONG DOUBLE - Mattress Size: 2030 x 1350

QUEEN - Mattress Size: 2030 x 1520

SPLIT QUEEN -Mattress Size: 2030 x 760 (Per side)

ActiveX Material is always adapting to allow blood to circulate freely and to minimise pressure on areas of risk. It responds to pressure and temperature.

Icare mattresses don’t have any springs which makes them suitable for any profiling or static mattress platforms. We have found springs cause problems over time particularly on medical beds. And of course springs don’t have a good pressure care track record.
