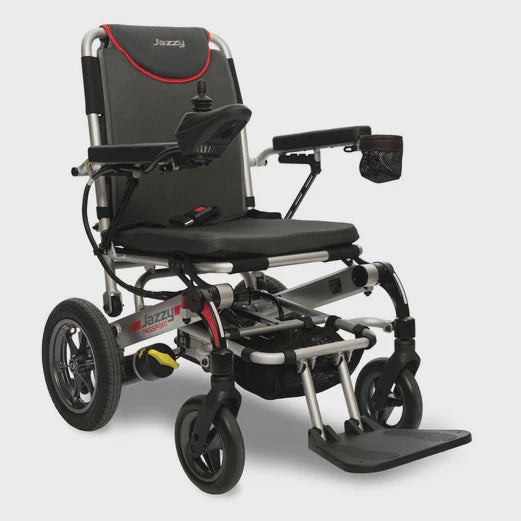

Experience the beauty of lightweight travel with the Jazzy® Passport! This compact power chair folds in just a few simple steps for effortless transport. With convenient storage the Jazzy Passport makes travelling a breeze.
Jazzy® Passport Features
- A compact and lightweight design makes travelling a breeze
- Back seat pocket for extra storeage while on-the-go
- Folds in just a few simple steps for effortless transport
- Includes convenient, under seat mesh storage bac, mesh cub holder and 101.6cm (40") lap belt
- Large foot platform to accommodate the user's comfort
- Speciality foam seat design for extreme comfort
- Available option is a 10.4 AH lithium ion air safe travel battery (check with your airline before flying)
Specifications
| Maximum User Weight |
113.3KG |
| Maximum Speed |
Up to 5.7 km/h |
| Range per charge (MAX) |
Up to 15.4 km |
| Overall Length |
101.6 cm |
| Overall Width |
59.6 cm |
| Ground Clearance |
7.6 cm at motor |
| Turning Radius |
61.5 cm |
| Front Wheels |
8” solid castors |
| Drive Wheels |
12" Pneumatic |
| Suspension Type |
Limited |
| Drive Train |
2 x 180W brushed motors, rear drive |
| Braking System |
Regenerative and electro-mechanical |
| Battery Charger |
Off-board, 2 amp (Lithium Ion) |
| Standard Seating |
Material: Grey, foam
Dimensions: 45 x 43 cm (17.7" x 16.9") |
| Battery Requirements |
(1) 18AH, 24V (Lithium ion) |
| Battery Weight |
3.9 kg |
| Total Weight without batteries |
24 kg |
| Seat to Ground height |
48.3 cm (19") |
| Seat to foot platform height |
40 cm (15.74") (no adjustment) |
| Colour Options |
Pewter |
|
|
